RE-AMEMIYA Additional RHS Oil Cooler for Mazda RX8 (Series 1, 2003-2008)

Adds a dedicated right-hand-side oil cooler to Series 1 RX8s. Its GREDDY core is rated at 9,800 cal/h to protect the Renesis rotary during track sessions, sustained highway runs and hot-weather driving.

Reviews from around the web

Independent reviews of this product gathered from other stores and owner communities.

I have the oil cooler fitted recently Jarl, with a MazdaSpeed (RHS) oil cooler

Try to get the MazdaSpeed or the US, Hong Kong or Japan spare parts. I suspect they are different but what the hell it is still an oil cooler. Japan does not have oil cooler in the Type S as standard but most people will have that as option. Certainly they mostly opted for the MazdaSpeed version of the oil cooler (btw it looks the same as the other one I have now )

There are many oil cooler available as an aftermarkey option, such as HKS and Fujita engineering, just to name two.

They are very pricey and go over the $1000 mark. So I choose the $600 MazdaSpeed one instead.

What you need is a garage, really. I will recommend changing oil and oil filter at the same time. It does mean a cleaner job. Make sure you take care of the joints and prepare for an oil leak (did have some on my installation). The right oil cooler gets the first of the oil from the central (engine) side and they travel to the left (stock) one before going back to central. There is a bass tube (as shown in the attachement above) to connect the right to the left oil cooler.

Get a quote for $300 installation since it will take someone 6 hours to do (inc changing oil). Make sure they run the car for 10 minutes before putting the front bumper back up, just to see if there are still leaks.

Result is amazing, central console is not hot anymore, well... it is cooler than what it has been. Say the temp in the cup holder used to be like the upper tray of the coffee machine (the area that warms the cup). Now it is like the keyboard of your laptop, still warm but certainly the house key I put in the cup holder will not burn my finger anymore.

MazdaSpeed oil cooler is race proven. In BestMotoring, people raced for 20 minutes in the heat, MazdaSpeed oil cooler has a oil temp of 100 degree cel, but the S2K and Integra are running at 130 degree plus.

Original price was: $1,200.Current price is: $950.

The RX8 additional oil cooler from RE-AMEMIYA fills the right-hand-side aperture of Series 1 cars. It gives the Renesis a second dedicated cooling circuit alongside the factory left-side unit. Built around a GREDDY core rated at 9,800 cal/h, the kit arrives complete and ready to bolt on.

It is designed for manual-transmission Series 1 owners who want genuine oil temperature management. This additional oil cooler has shown oil temperature reductions of around 10 degrees Celsius. The gains held at sustained 5,000-6,000 rpm under real-world and circuit conditions.

RE-AMEMIYA RX8 Additional Oil Cooler Key Features

  • GREDDY core construction underpins the unit, rated at 9,800 cal/h of heat dissipation for effective thermal management on public roads and circuits.
  • The cooler installs in the factory RHS mounting position, using the existing aperture and airflow path. No cutting or bracket fabrication is required.

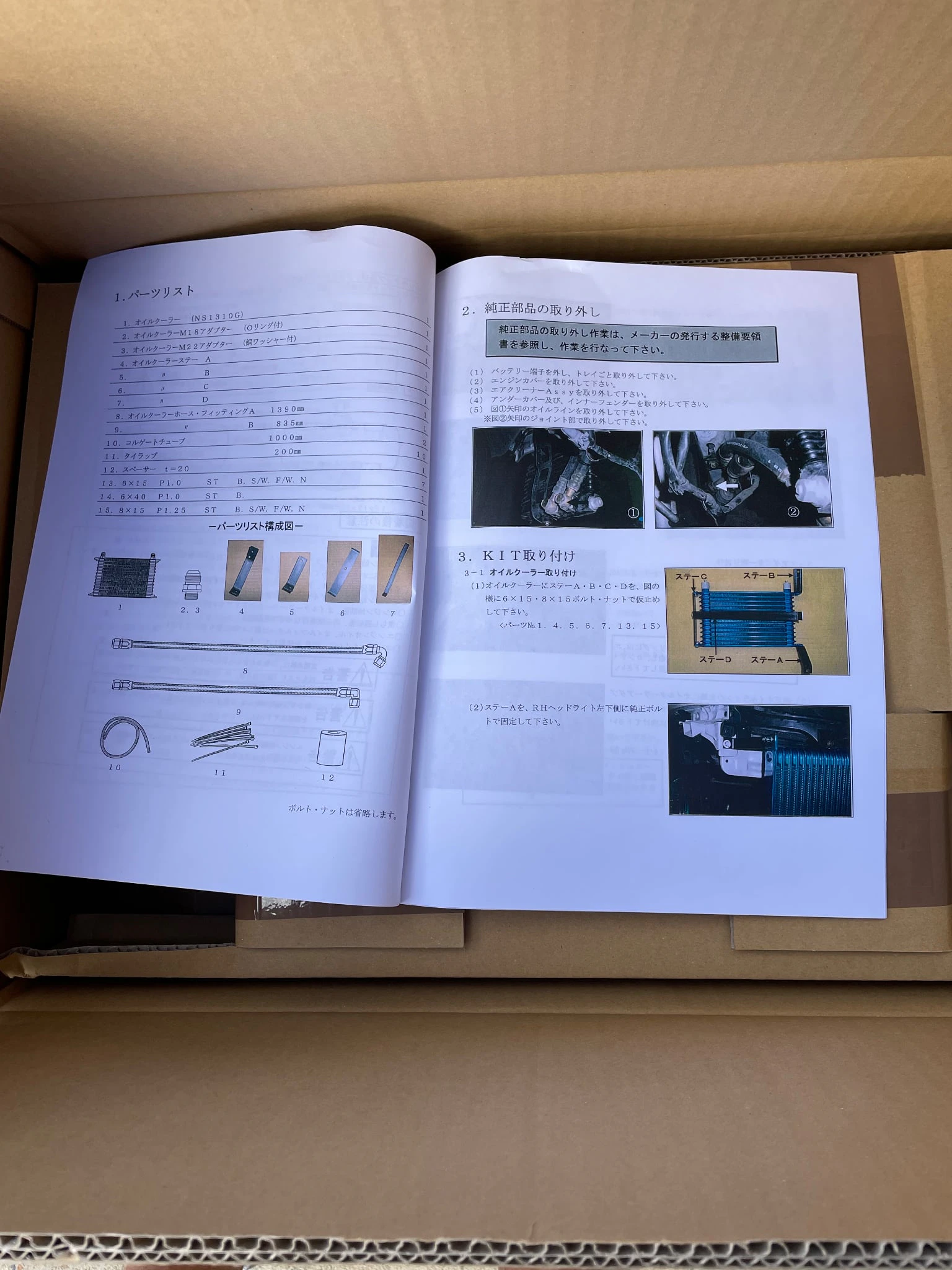

  • Supplied as a complete installation kit, everything needed for a clean, professional fit comes in the box. No sourcing of additional hardware separately is required.
  • Fitment is Series 1 manual only, covering Mazda RX8 models from 2003 to 2008. This ensures correct line routing and sizing for that generation.
  • Finally, RE-AMEMIYA’s rotary-specific engineering pedigree means the kit is developed around the Renesis engine’s thermal characteristics. It is not adapted from a generic platform. That distinction matters for long-term reliability.

For rotary enthusiasts who drive hard in Australia’s climate, adding an RX8 additional oil cooler is one of the most direct reliability investments available. The factory left-side cooler works alongside this RHS unit. Together they give the Renesis a genuine thermal buffer through back-to-back track sessions or long summer highway runs.

The difference shows up most clearly when you check oil temp after a spirited drive and the gauge holds steady where it used to climb.

For a thorough cooling and lubrication refresh, the BEATRUSH Engine Cooling Under Panel Tray improves underbody airflow to the entire front cooling stack, working directly with the additional cooler. The R-MAGIC Super High Flow Water Pump keeps coolant moving more efficiently during sustained use, complementing the improved oil cooling.

The GREDDY TRUST Oil Filter rounds out the oil system with a quality Series 1-compatible filter that matches the GREDDY core at the heart of this cooler kit. For full manufacturer background, visit RE-AMEMIYA’s official site.

Reviews from around the web

Independent reviews of this product gathered from other stores and owner communities.

I have the oil cooler fitted recently Jarl, with a MazdaSpeed (RHS) oil cooler

Try to get the MazdaSpeed or the US, Hong Kong or Japan spare parts. I suspect they are different but what the hell it is still an oil cooler. Japan does not have oil cooler in the Type S as standard but most people will have that as option. Certainly they mostly opted for the MazdaSpeed version of the oil cooler (btw it looks the same as the other one I have now )

There are many oil cooler available as an aftermarkey option, such as HKS and Fujita engineering, just to name two.

They are very pricey and go over the $1000 mark. So I choose the $600 MazdaSpeed one instead.

What you need is a garage, really. I will recommend changing oil and oil filter at the same time. It does mean a cleaner job. Make sure you take care of the joints and prepare for an oil leak (did have some on my installation). The right oil cooler gets the first of the oil from the central (engine) side and they travel to the left (stock) one before going back to central. There is a bass tube (as shown in the attachement above) to connect the right to the left oil cooler.

Get a quote for $300 installation since it will take someone 6 hours to do (inc changing oil). Make sure they run the car for 10 minutes before putting the front bumper back up, just to see if there are still leaks.

Result is amazing, central console is not hot anymore, well... it is cooler than what it has been. Say the temp in the cup holder used to be like the upper tray of the coffee machine (the area that warms the cup). Now it is like the keyboard of your laptop, still warm but certainly the house key I put in the cup holder will not burn my finger anymore.

MazdaSpeed oil cooler is race proven. In BestMotoring, people raced for 20 minutes in the heat, MazdaSpeed oil cooler has a oil temp of 100 degree cel, but the S2K and Integra are running at 130 degree plus.

Additional information

RX8 Model

SKU RA-OCR-S1 Categories , Types , Brand:

Related RX8 Upgrades

This additional rhs oil cooler is one of the best Mazda RX-8 upgrades you can make to your Series 1 (2003-2008). Oil cooling upgrades are among the top Aftermarket mods you can buy from RE-AMEMIYA for owners who want better performance and reliability from their RX8. If you are looking for rx8 additional oil cooler for sale in Brisbane (QLD), Sydney (NSW), Melbourne (VIC), Canberra (ACT), Adelaide (SA), Darwin (NT) or Perth (WA), you’ll find high-quality Japanese Cooling upgrades at RX8 Upgrades.

Frequently Asked Questions

Which RX8 models does the RE-AMEMIYA additional oil cooler fit?

The RE-AMEMIYA additional RHS oil cooler is designed specifically for Mazda RX8 Series 1 models built from 2003 to 2008. It is not listed as compatible with Series 2 cars, so confirm your build year before ordering.

Where does this oil cooler mount on the RX8?

The cooler mounts in the right-hand-side position at the front of the car, using the existing factory aperture and mounting points. No cutting or custom bracket fabrication is required, as the installation follows the original mounting arrangement intended for that location.

Why would a Series 1 RX8 need an additional oil cooler beyond the factory setup?

The Renesis rotary engine generates significant oil heat under sustained load, and the OEM cooling arrangement leaves limited thermal margin during hot Australian summers, repeated track sessions or extended high-rpm driving. Adding a dedicated oil cooler in the RHS position gives the engine a genuine thermal buffer, reducing the risk of oil degrading prematurely under those conditions.

Does fitting an additional oil cooler require modifying the car's bodywork or fabricating new brackets?

No. The RE-AMEMIYA unit is designed to occupy the factory-intended right-hand-side position, using the existing aperture and mounting points on Series 1 cars. The installation follows the original mounting arrangement without requiring cuts to the bodywork or fabricated brackets.

Is RE-AMEMIYA a reputable brand for rotary engine cooling parts?

RE-AMEMIYA is one of Japan's most respected rotary specialists, with decades of race-developed experience working with Mazda rotary engines. Their cooling products are informed by a deep understanding of the Renesis engine's thermal behaviour at its limits.

What other cooling upgrades pair well with this oil cooler on a Series 1 RX8?

The BEATRUSH Engine Cooling Under Panel Tray improves underbody airflow to the front cooling stack, while the R-MAGIC Super High Flow Water Pump keeps coolant circulating more efficiently under sustained use. Replacing the radiator hoses with a Genuine Mazda OEM set at the same time ensures the entire cooling circuit is in known-good condition.

Will adding an oil cooler make a noticeable difference on track days or in hot weather?

Yes, in conditions where oil temperatures typically climb, such as track sessions, repeated hard runs or slow traffic on hot days, a dedicated additional cooler keeps operating temperatures in a safer range for longer. This helps maintain oil viscosity and reduces the rate of thermal degradation during the kind of driving that stresses the factory setup most.
